Product Information

Gate Castors from Sinclair & Rush.

Our Gate Castors help to support the weight of wide gates and are easily installed with just 2 bolts. Both types come with 100.00mm Diameter wheels with 40.00mm Tread Width and have a total height of 375.00mm. The Bearings allow for 75KG Load. The spring on the Gate Castor allows for up to approximately 75.00mm of travel. Spring compression begins from 20KG.

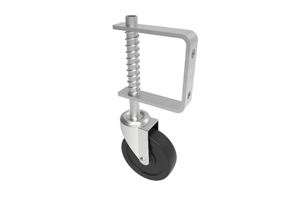

New for 2023, we now offer a Lightweight, budget version Gate Castor for lighter weight applications where less travel is required. Budget Gate Castors are now available from stock and feature 35.00mm Travel and a Load of 60KG. The 100.00mm Diameter wheel has 27.00mm Tread Width and total height is 275.50mm.

We offer a standard stock range of Gate Castors available for next-day delivery and can also assist with any custom enquiries that you have relating to this product. If you cannot find the part you are looking for, or need any help selecting the correct size, please call our Sales Team now on 01634 686504 and we will be happy to assist.

[CLICK HERE] to watch our product-selection tutorial.

Product Uses

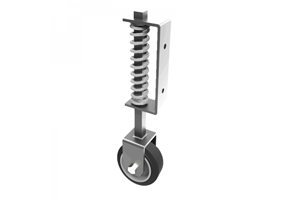

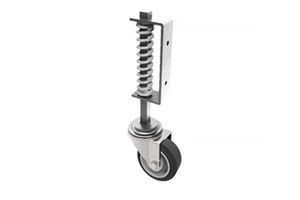

This Gate Castor has been specially designed to support the weight of wide gates, without restricting the movement. There is a choice of fixed, or swivel, depending on the arc of the gate and surface it will travel over. Made from a fabricated steel bracket, this is a neat solution to prevent 'sagging' and premature wear.

Benefits of using Gate Castors

• Durable fabricated steel bracket
• Spring loaded to travel across uneven ground
• 75.00mm range of movement/travel
• 75KG Load Rating
• Simple installation with 2 bolt holes
• Our agents are available on Live Chat if you need any help
